Pullboy Z Easy | 4 Compartment | 74L | 600mm Door
Product code: 827616-85E
Free delivery on orders over £50 - UK Mainland Only ( See Delivery for exclusions )
Full Specification

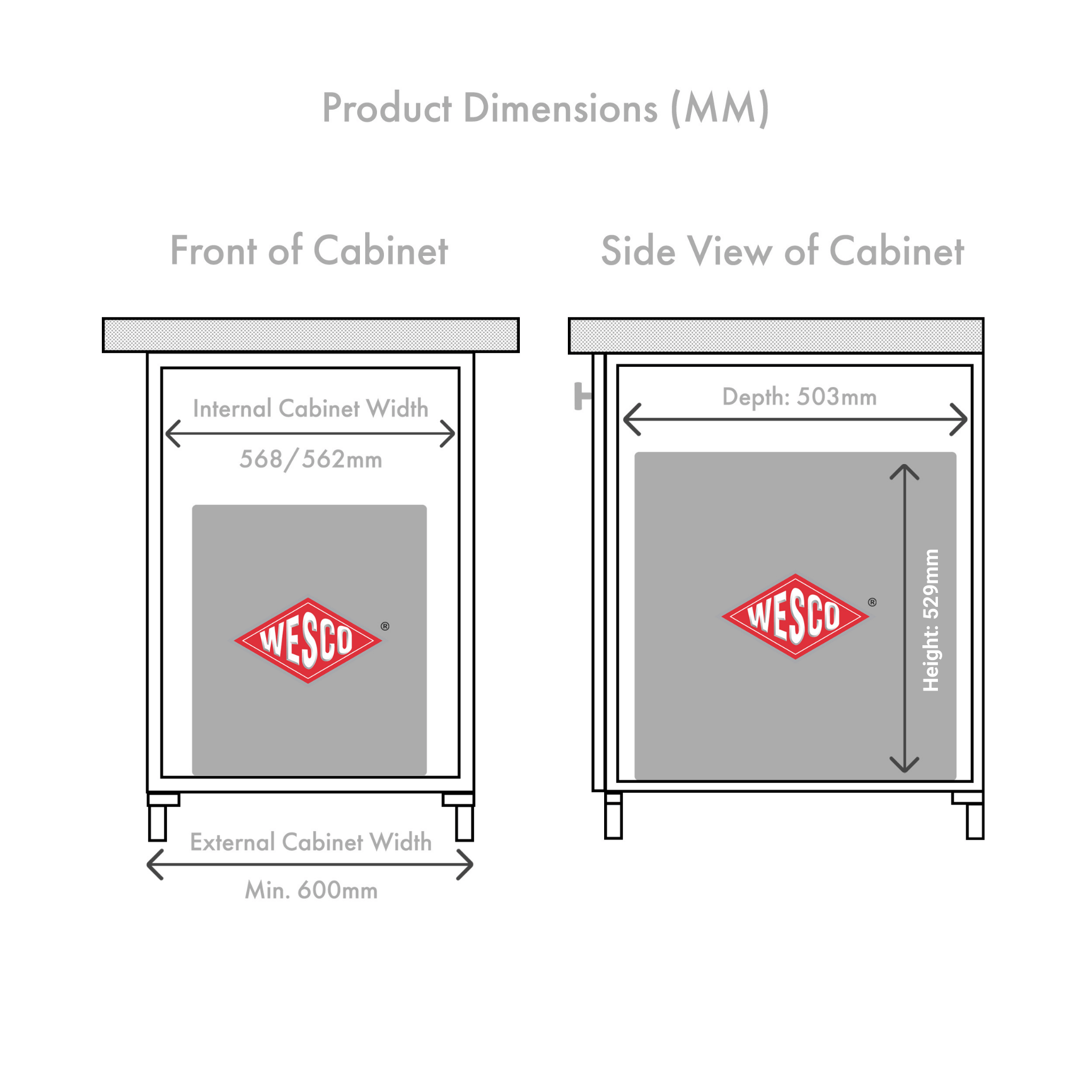

| Internal Cabinet | (H) 529mm x (W) 562-568mm x (D) 503mm |
| External Cabinet Width | 600mm |
| Door Width | 600mm |
| Height | 529mm |
| Capacity | 74L |
| Colour | Alu Grey |
| Door Type | Pull-out Door |
| Number of Compartments | 4 |
| Soft Close | Yes |
| Drawer Type | Blum Antaro |
Cleaning Instructions
Fitting Guide
Choose options
Product Information
Pullboy Z Integrated Recycling Bin 600mm Door 74L (2 x 29L and 2 x 8L)
The Wesco Pullboy Z in-cupboard waste bin system offers the ultimate range of recycling 'built in bins' for Kitchens, workplaces and other applications.
The Pullboy Z Easy, has a clean and sleek frame throughout removing those nooks and crannies that previously were hard to clean. The bin inserts have strong and sturdy handles and there are a great range of capacities, suitable for dividing general and recyclable waste.
About:

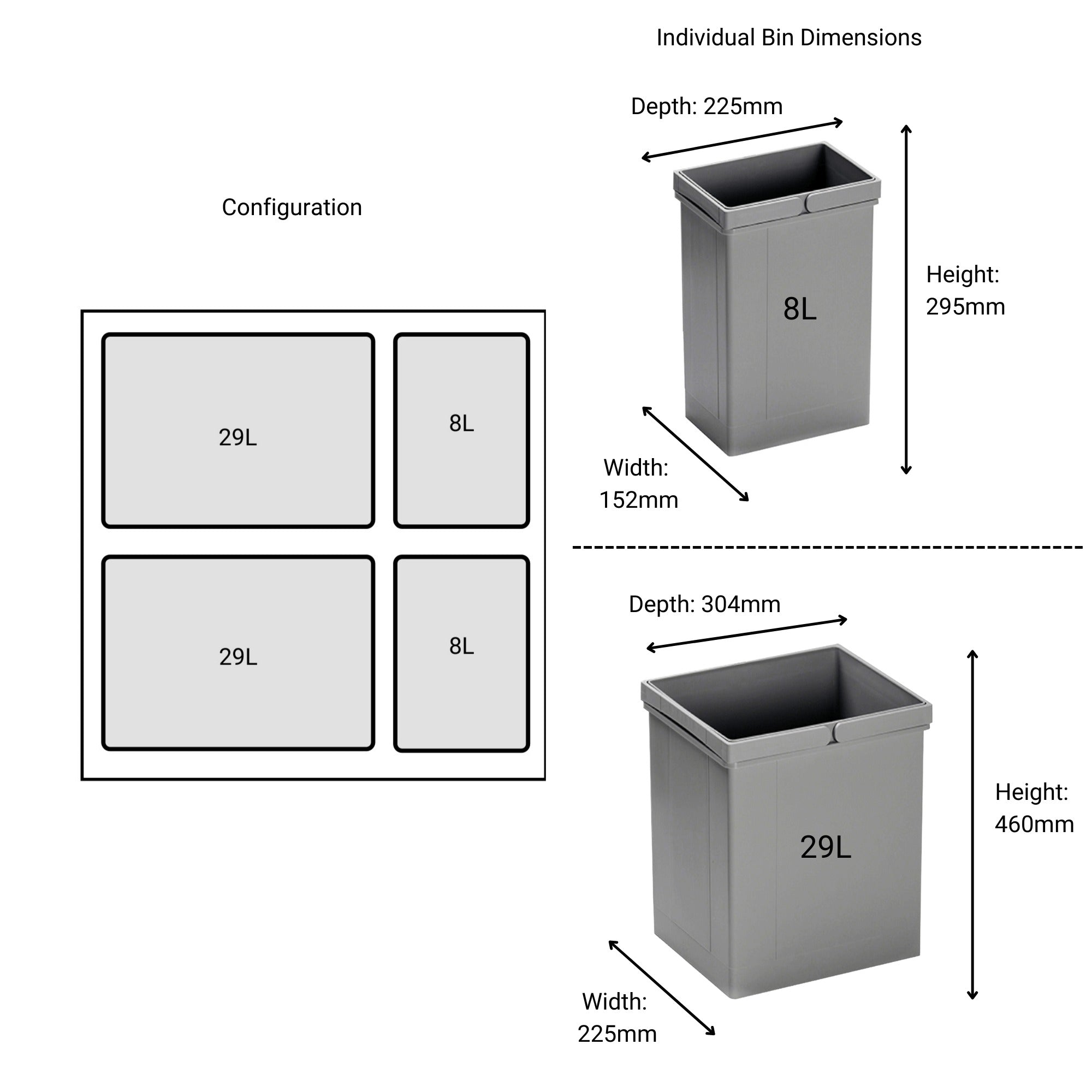

This 74 Litre version is made up of 2 x 29L and 2 x 8L plastic inner bins with sturdy plastic handles, making cleaning and removal of waste easy. It is suitable for 600mm wide cabinets based on 16-19mm thick carcass walls.
The Pullboy Z Built-In recycling bin needs to be mounted within a Blum Tandembox Antaro drawer, included are the fittings for this system that allow it to be mounted to a slab door. This drawer system incorporates the soft close functionality within its runners, making for a smooth-running bin system that closes silently and effortlessly.
Please Note: This waste bin system requires the addition of a 600mm wide Blum Tandembox drawer for it to be installed. Choose from the drop down options to purchase this bin system including or excluding the drawer. When ordering "including Antaro Drawer" you will require an 18mm or 19mm thick carcass, for 16mm thick carcass additional packing will be required

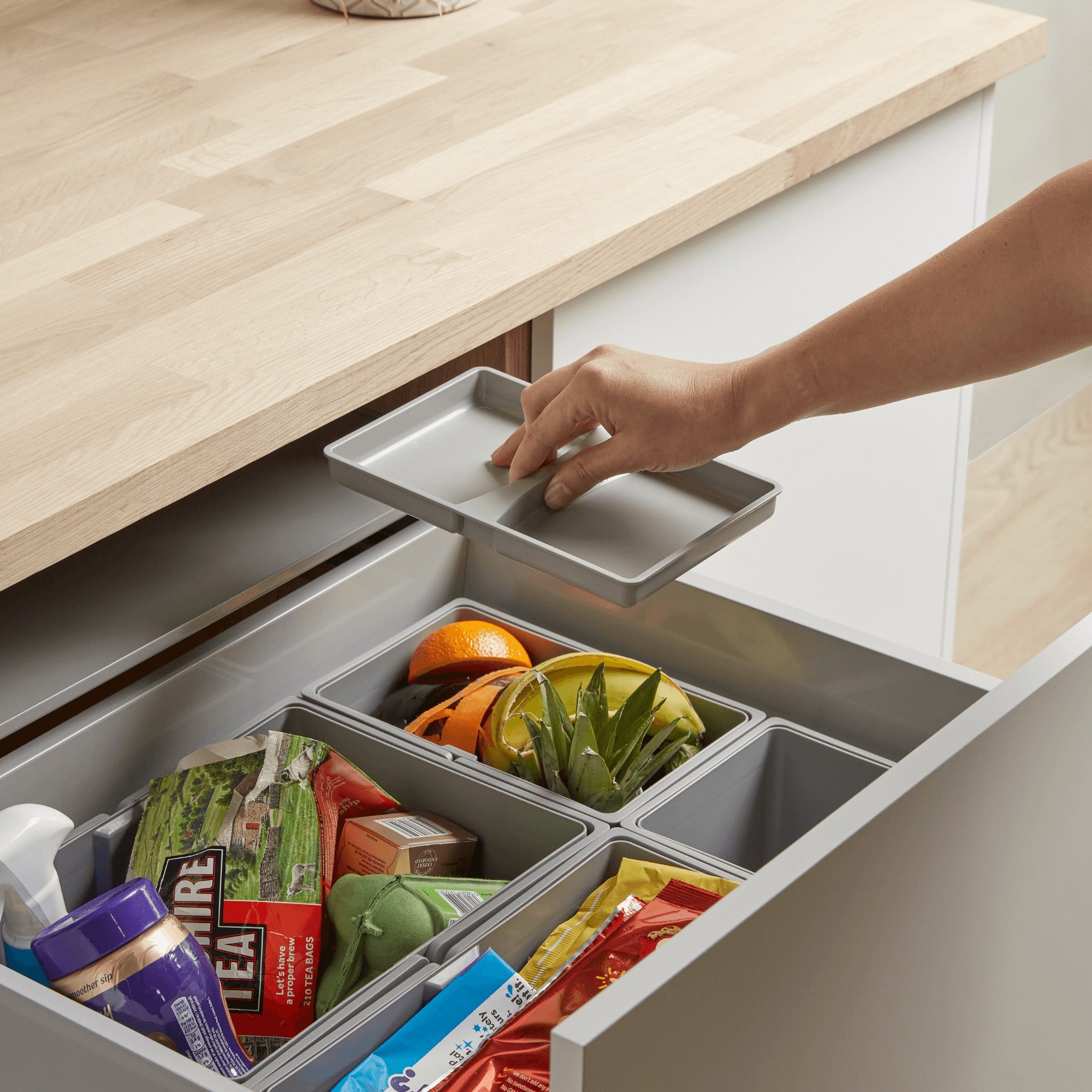

Operation: The Pullboy Z bin system is mounted to the cabinet door, as the door is pulled out the bin compartments come out simultaneously. There is an odour trap lid that sits across the complete bin system to prevent smells from escaping.
This Pullboy Z comprises of:
1 x Steel Frame
2 x 29L Plastic Inner Bins with Double Plastic Handles
2 x 8L Plastic Inner Bins with Double Plastic Handles
1 x Steel Odour Trap Lid
1 x Fixing Bracket Set for Slab Doors
Take a look at our'Suggested Extras' for additional lids and if you are using a framed or shaker door you will require the additional fixing brackets.
To assemble this bin system some DIY skill will be required.
Older Version product codes: 827618-11 / 827616-11
